Product Description
High Speed High Precision Linear Motor tables
Allow us a quick moment to shine the spotlight on one of our more impressive precision motion systems, the 1304 Series Linear Motor XY Slide.

Our 1304 series of linear motor tables were developed as an evolution of our 1199 series low profile XY tables. It boasts the same high standards for linear accuracy (<0.0005") and orthogonality (<9 arc seconds) as our standard XY's, but it also has impressive stats for acceleration, speed, and encoder positional accuracy (down to 0.1 µm).
These systems are typically used in high-speed production systems where low cycle time and ultra precision accuracy are of the highest importance. As an example, say an application required spot-welds 1/4" apart as quickly as possible. Accounting for acceleration and deceleration, our base level linear motor table would perform those welds 20 times per second with staggering accuracy.

Features:

• Standard travel lengths of 8”, 12” and 20”

• Custom options available for varying travel lengths up to 24”

• Position accuracy and repeatability capable of hitting down to 0.1um (0.000003937")

• High speed and acceleration

• Available as a single axis

• Low mass, low profile design

• Preloaded steel rail, crossed roller bearings maintain high linear accuracy and stiffness

• Orthogonality is closely monitored and machined in. It never goes out of adjustment

• Drive and switch mechanisms are covered to protect from dirt and contamination

• A total of 6 optical switches to use as limit switches or home switches. Switches include 5’ Cable with Amphenol connector
MECHANICAL CONCEPTS, INC
Established in 1979
Design & Fabrication of Custom Engineered Machinery

Standard Products
Return to Products Main Page

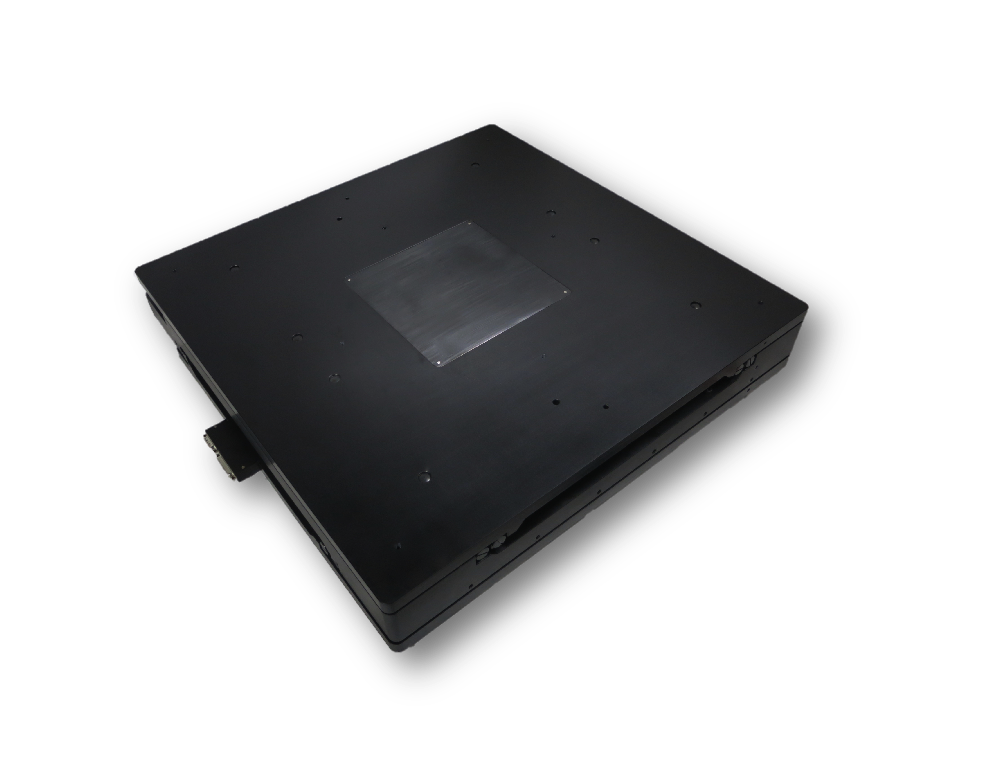

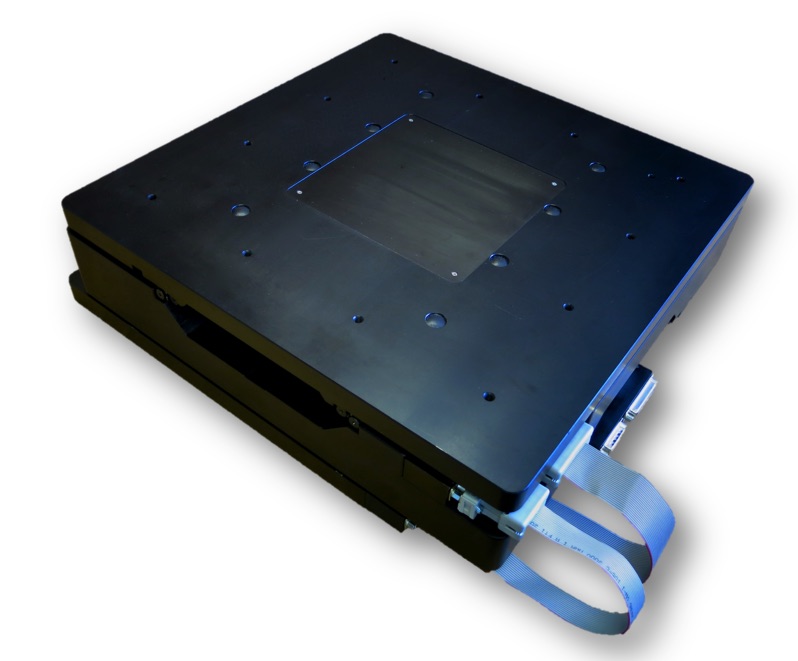

Linear Motor Table Closed

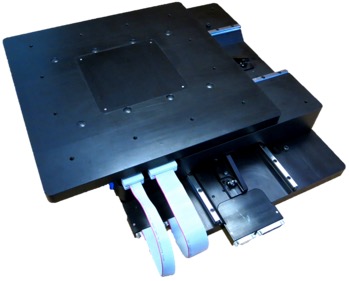

Linear Motor Table Open

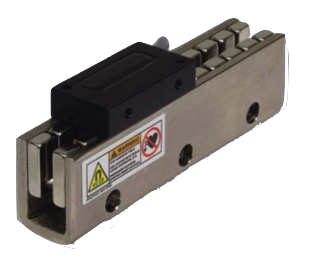

Linear Motor
1304 Series Linear Motor XY Slides
Low cost of ownership and industry leading specs make Mechanical Concepts the clear choice for precision applications such as:

  • Additive Manufacturing
  • Automated Assembly
  • Automated Resistance Welding
  • Electronics
  • Gantry Applications
  • Inspection/Test
  • Laser Welding/Marking
  • Semiconductors
  • Vacuum


Allow us a quick moment to shine the spotlight on one of our more impressive precision motion systems, the 1304 Series Linear Motor XY Slide.

Our 1304 series of linear motor tables were developed as an evolution of our 1199 series low profile XY tables. It boasts the same high standards for linear accuracy (<0.0005") and orthogonality (<9 arc seconds) as our standard XY's, but it also has impressive stats for acceleration, speed, and encoder positional accuracy (down to 0.1 µm).
These systems are typically used in high-speed production systems where low cycle time and ultra precision accuracy are of the highest importance. As an example, say an application required spot-welds 1/4" apart as quickly as possible. Accounting for acceleration and deceleration, our base level linear motor table would perform those welds 20 times per second with staggering accuracy.


Features:

• Standard travel lengths of 8”, 12” and 20”

• Custom options available for varying travel lengths up to 24”

• Position accuracy and repeatability capable of hitting down to 0.1um (0.000003937")

• High speed and acceleration

• Available as a single axis

• Low mass, low profile design

• Preloaded steel rail, crossed roller bearings maintain high linear accuracy and stiffness

• Orthogonality is closely monitored and machined in. It never goes out of adjustment

• Drive and switch mechanisms are covered to protect from dirt and contamination

• A total of 6 optical switches to use as limit switches or home switches. Switches include 5’ Cable with Amphenol connector
