Product Description
4 Inch Manual Slides
We developed this modular series of manual slides for precise positioning of laser focus heads; however their stability, accuracy, and modularity make them suitable for many other applications. They utilize preloaded crossed roller bearings for maximum stability and smooth motion over the full 1.1 inches of total travel. They are available as a single axis, or as an X/Y, but because of their modular design they can be stacked in virtually any configuration with optional swivels and right angle brackets. The stages also feature locking brackets that will hold the stage in place without introducing unwanted force that could move the work out ouf alignment. There are Many possible configurations of these slides, and we have shown just a few here.




MECHANICAL CONCEPTS, INC
Established in 1979
Design & Fabrication of Custom Engineered Machinery

Standard Products
Return to Products Main Page
1213 Manual Slides
Low cost of ownership and industry leading specs make Mechanical Concepts the clear choice for precision applications such as:

  • Assembly
  • Electronics
  • Inspection/Test
  • Lab
  • Laser Welding
  • Motion Picture/Model Moving
  • Optical Alignment
  • Semiconductors
  • Vacuum

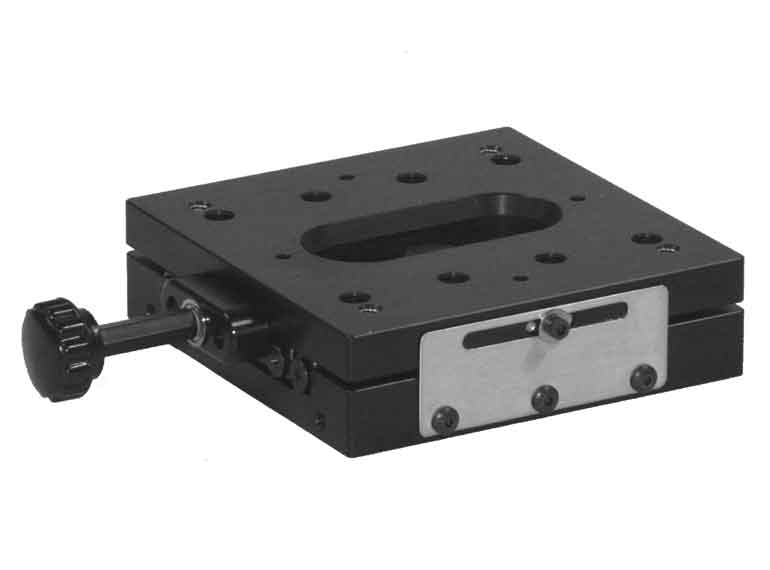

manual slide-single

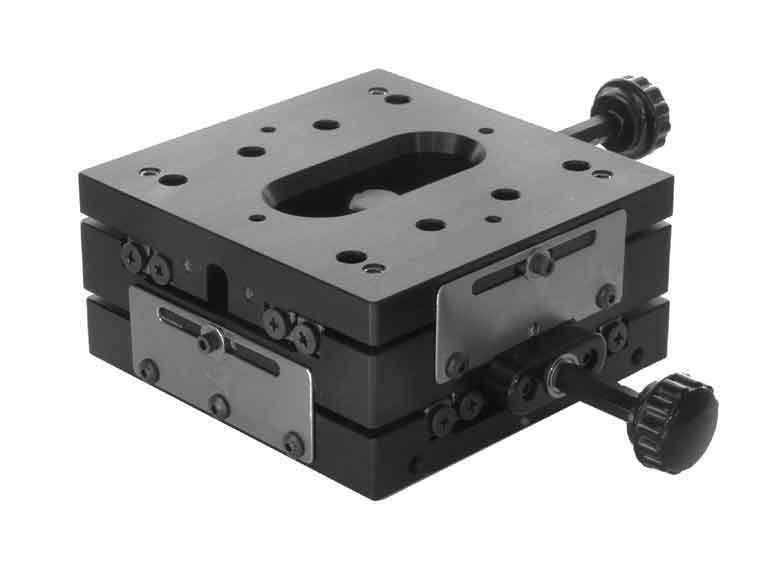

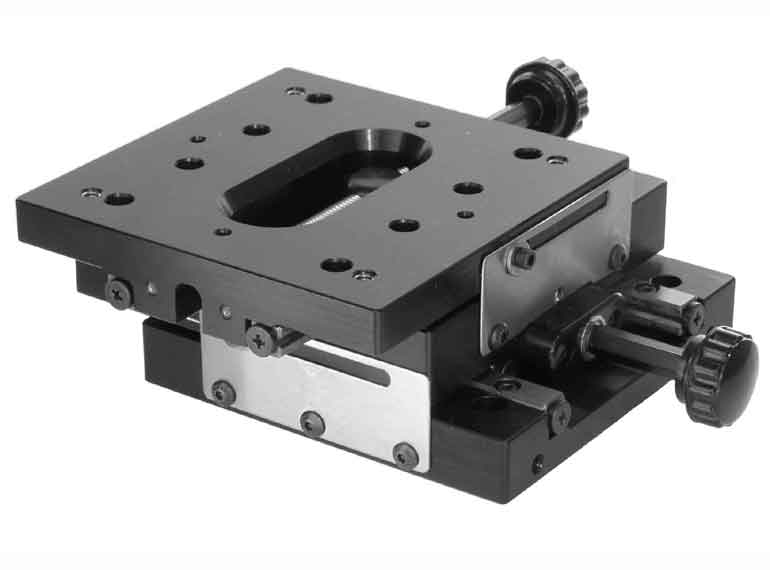

Manual 2 axis closed
Manual 2 axis open

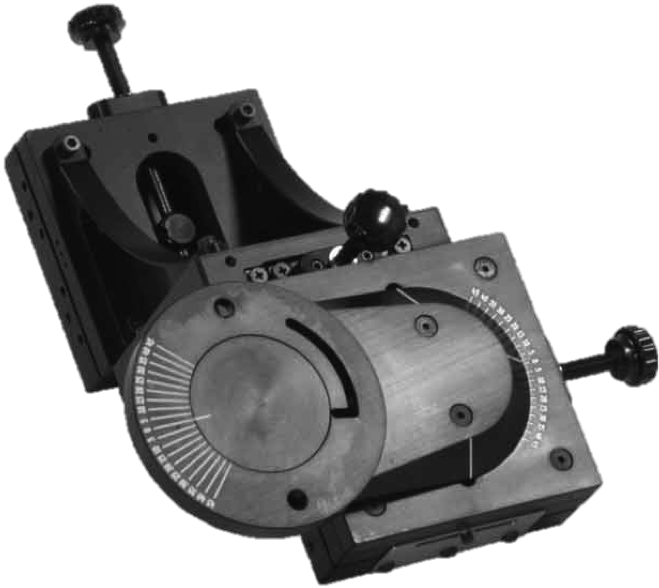

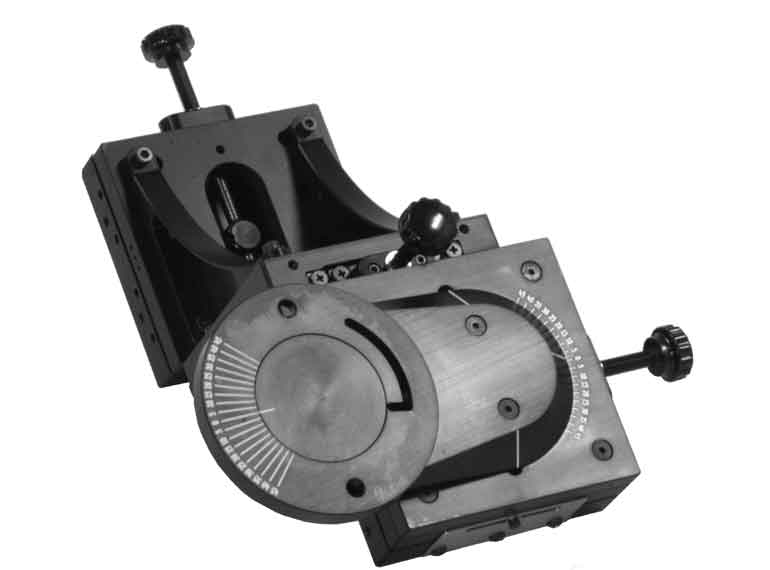

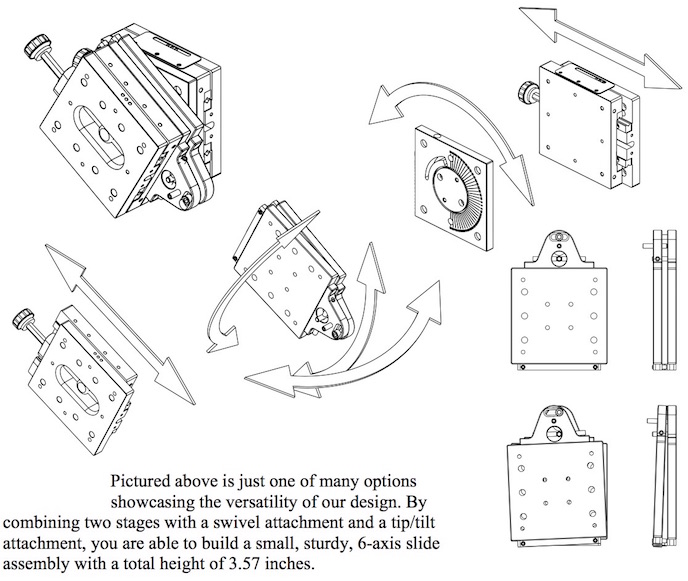

Manual Slides with swivel

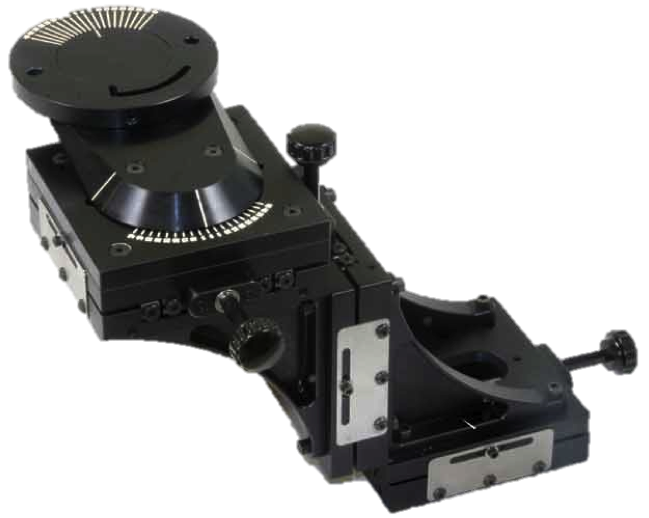

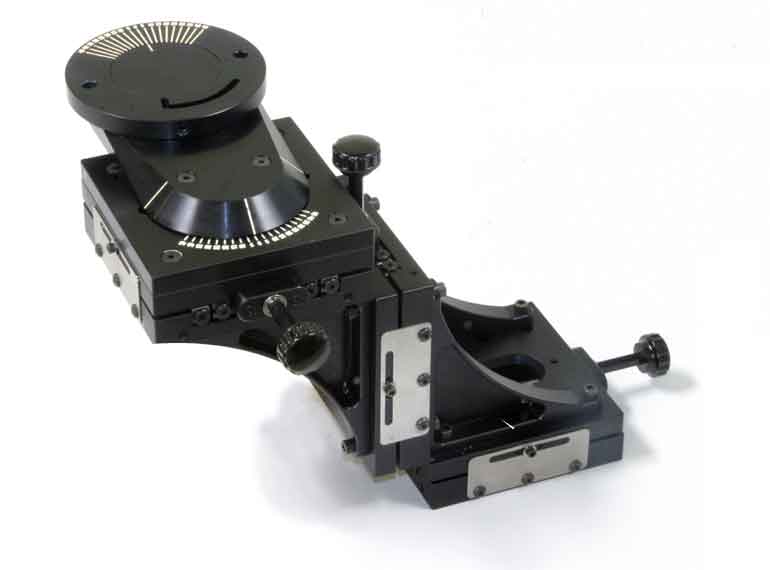

Manual slides with swivel2
We developed this modular series of manual slides for precise positioning of laser focus heads; however their stability, accuracy, and modularity make them suitable for many other applications. They utilize preloaded crossed roller bearings for maximum stability and smooth motion over the full 1.1 inches of total travel. They are available as a single axis, or as an X/Y, but because of their modular design they can be stacked in virtually any configuration with optional swivels and right angle brackets. The stages also feature locking brackets that will hold the stage in place without introducing unwanted force that could move the work out ouf alignment. There are Many possible configurations of these slides, and we have shown just a few above.
