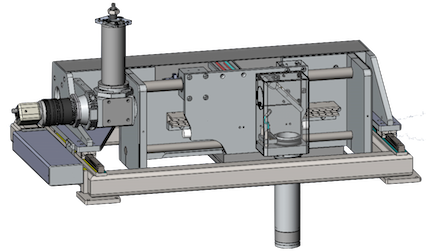

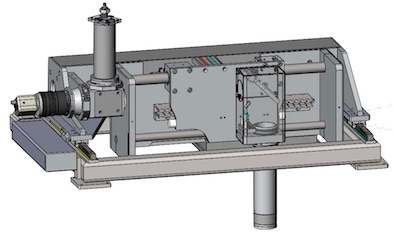

Air bearing, linear motor and linear encoder X stage with standard Y axis. This low mass, high speed X axis allows ultimate acceleration and accuracy. The laser delivery optics are separated with the collimator and camera mounted to the low use Y axis. The collimated beam goes from there to a mirror mounted on the X axis and then trough the focusing lens. This arrangement separates the laser fiber from the constantly moving X axis thereby removing the load of moving the fiber from the axis and reducing the stress that much movement would put on the fiber.
We have been honored to collaborate with Miyachi Unitek (www.miyachiunitek.com) on multiple projects over the years. We provide a variety of motion components, laser delivery/focus heads and components, as well as customer specific fixturing and parts handling. Miyachi Unitek then integrates our components along with their lasers, motion control electronics, enclosures and operator interfaces to provide a complete turnkey solution to their customer's unique requirements, which is backed by Miyachi Unitek's worldwide service and support network.

Here are some examples of the kind of projects we have worked with them on.

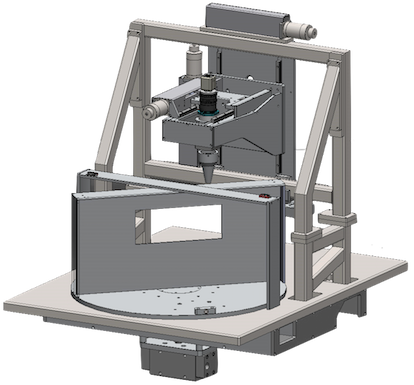

X, Y, Z motion gantry with large fixture holding, 2 position rotary table. This system allowed an operator to change parts in one position while automatic welding took place in the second position

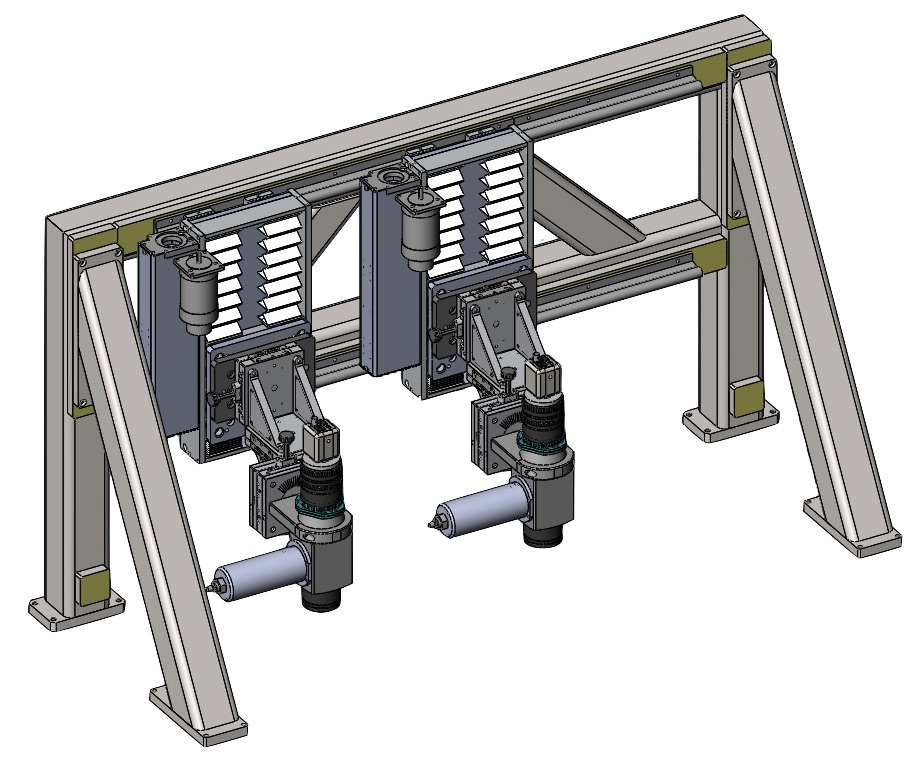

Double laser heads, both with motion controlled X, Z motions. Manual slides provide fine adjustment for X, Y, Z and rotation of the focusing head

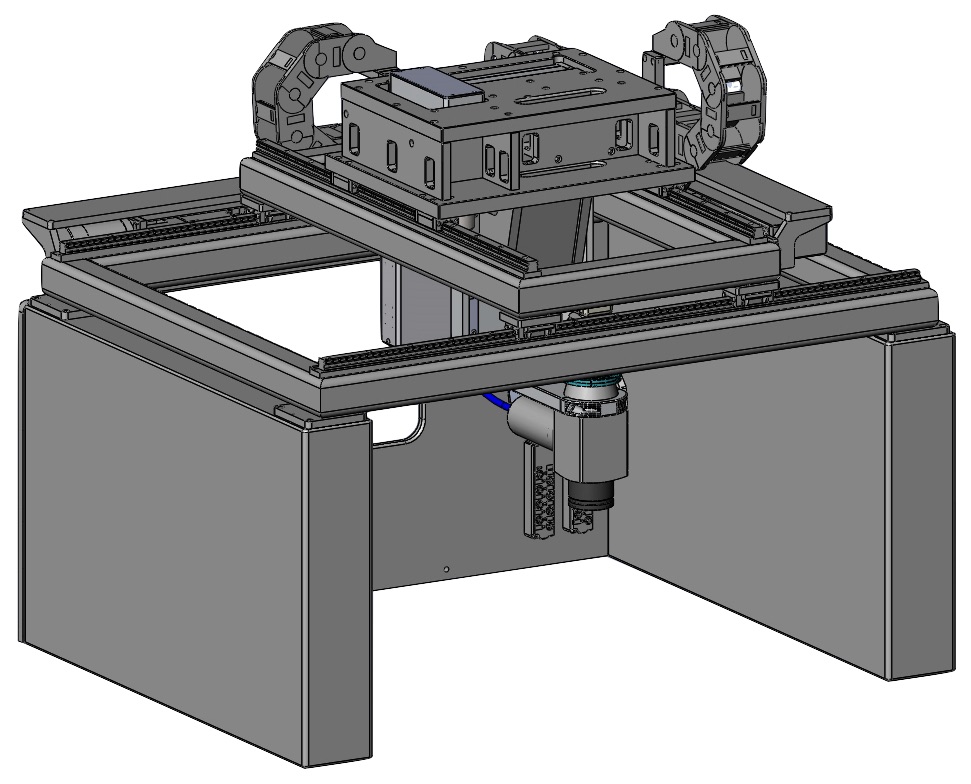

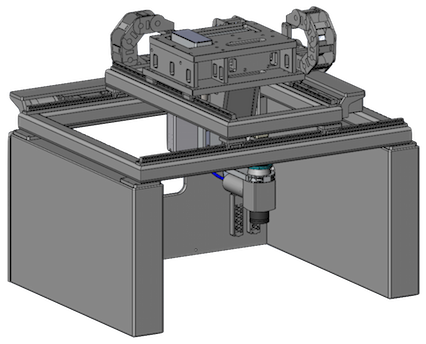

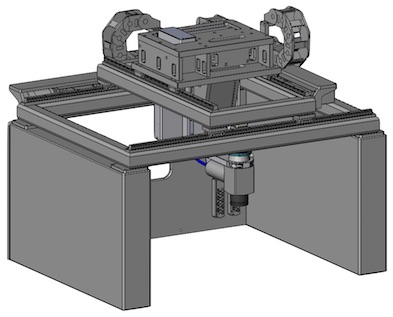

Large precision gantry system providing 20” of X axis motion, 16” of Y axis motion and 8”of Z. Supported on granite legs it provides plus or minus accuracy and straightness of < .001 over the full travel.
MECHANICAL CONCEPTS, INC
Established in 1979
Design & Fabrication of Custom Engineered Machinery

Custom Designed Laser Welding Equipment
Custom Machinery
Return to Products Main Page
We have been honored to collaborate with Miyachi Unitek (www.miyachiunitek.com) on multiple projects over the years. We provide a variety of motion components, laser delivery/focus heads and components, as well as customer specific fixturing and parts handling. Miyachi Unitek then integrates our components along with their lasers, motion control electronics, enclosures and operator interfaces to provide a complete turnkey solution to their customer's unique requirements, which is backed by Miyachi Unitek's worldwide service and support network.

Here are some examples of the kind of projects we have worked with them on.
Custom Designed Machinery for use in Laser Welding

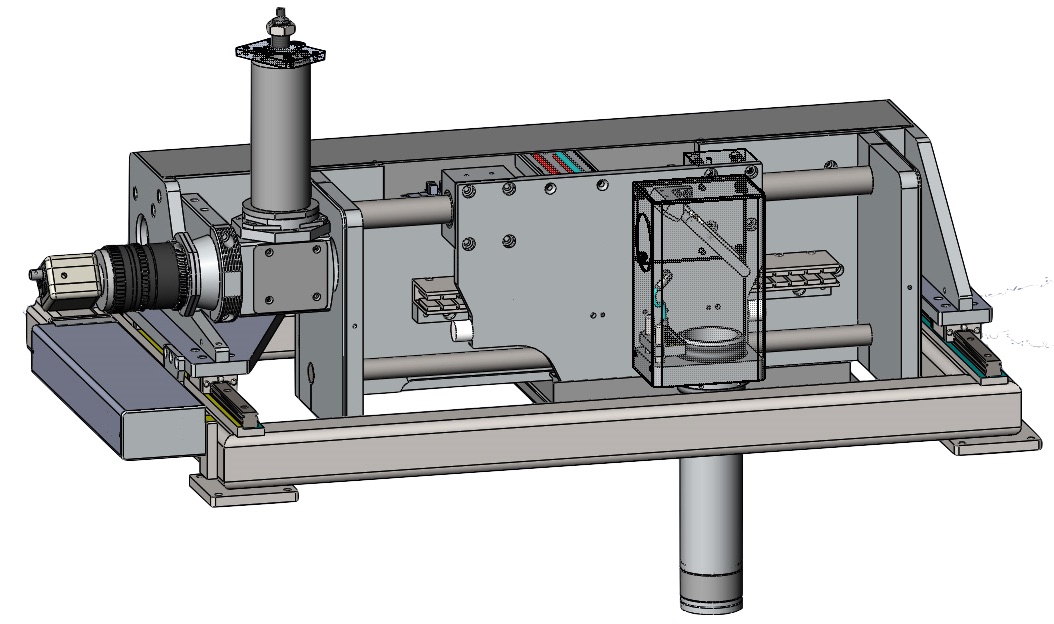

Air bearing, linear motor and linear encoder X stage with standard Y axis. This low mass, high speed X axis allows ultimate acceleration and accuracy. The laser delivery optics are separated with the collimator and camera mounted to the low use Y axis. The collimated beam goes from there to a mirror mounted on the X axis and then trough the focusing lens. This arrangement separates the laser fiber from the constantly moving X axis thereby removing the load of moving the fiber from the axis and reducing the stress that much movement would put on the fiber.
Large precision gantry system providing 20” of X axis motion, 16” of Y axis motion and 8”of Z. Supported on granite legs it provides plus or minus accuracy and straightness of < .001 over the full travel.

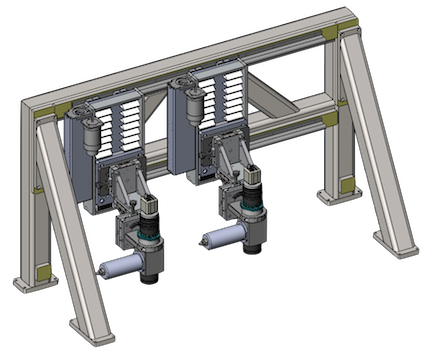

Double laser heads, both with motion controlled X, Z motions. Manual slides provide fine adjustment for X, Y, Z and rotation of the focusing head
X, Y, Z motion gantry with large fixture holding, 2 position rotary table. This system allowed an operator to change parts in one position while automatic welding took place in the second position
